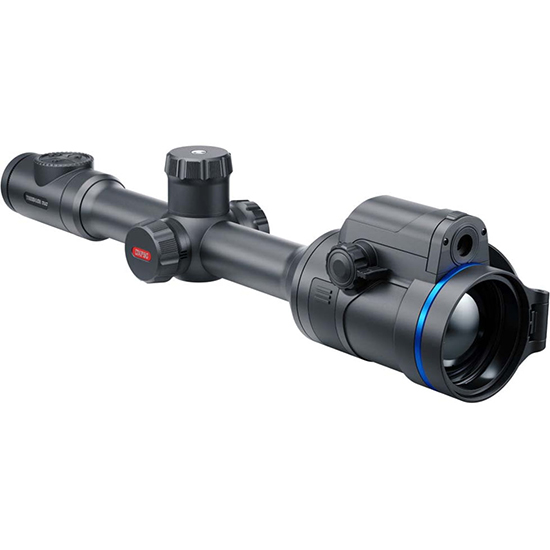

PULSAR THERMION DUO DXP55

Main – Sensor 640×480 pix. @ 17 um (thermal) CMOS 3840×2160 (digital) – Objective lens F50/1.0 (thermal) F35/4.34 (digital) – Magnification x 2-16 (thermal) 4-32 (digital) – Field of view (HxV) degrees / m@100m 12.4×9.3 / 21.8×16.4 (thermal channel on minimal magnification) 6.1×4.6 / 10.6×8 (digital channel on minimal magnification) – Detection range m 1800 (thermal detection) – Sensor – Type Uncooled (thermal) Full-color CMOS (digital) – Resolution pixels 640×480 (thermal) 3840×2160 (digital) – Pixel pitch um 17 (thermal) – NETD mK <25 – Frame rate Hz 50 – Optics – Objective lens F50/1.0 (thermal) F35/4.34 (digital) – Magnification x 2-16 (thermal) 4-32 (digital) – Field of view (HxV) degrees / m @ 100 m 12.4×9.3 / 21.8×16.4 (thermal channel on minimal magnification) 6.1×4.6 / 10.6×8 (digital channel on minimal magnification) – Eye relief mm 50 – Display – Type AMOLED HD – Resolution pixels 1024×768 – Range Performance – Detection range m 1800 (thermal detection) – Reticle – Click value H/V mm at 100 m 21.25 / 21.25 (thermal channel) 10.33 / 10.33 (digital channel) – Click range H/V mm at 100 m 4250 / 4250 (thermal channel) 2066 / 2066 (digital channel) – Number of preloaded reticles 10 – Video Recorder – Video / photo resolution pixel 1024×768 – Video / photo format .mp4 / .jpg – Built-in memory GB 16 – Wi-Fi – Wireless Protocol Wi-Fi – Wireless Standard IEEE 802.11 b/g/n/ac (WPA) – Frequency GHz 2.4 / 5 – Environmental Characteristics – Degree of protection IP code (IEC60529) IPX7 – Operating temperature range °c -25-+50 – Connections and Compatibilities – Max. recoil power on rifled weapon (Eo) Joules 6000 – Shock resistance on the smooth-bore rifles caliber 12 – Compatible mounts Standard 30 mm rings – Supported Application Stream Vision 2 – Power Supply – Output voltage V 3.0-4.2 – Battery type Li-Ion Battery Pack PS2 (external) + Li-Ion Battery Pack APS5 (internal) – Capacity mAh 2000 (external) + 4900 (internal) – Operating time on battery pack (at t=22°C) h * 6 – External power supply V 5V 9V (USB Type-C Power Delivery) – Weight & Size – Body material Aluminum alloy – Dimensions mm 420x78x83.5 – Weight kg 0.96 (batteries included)
