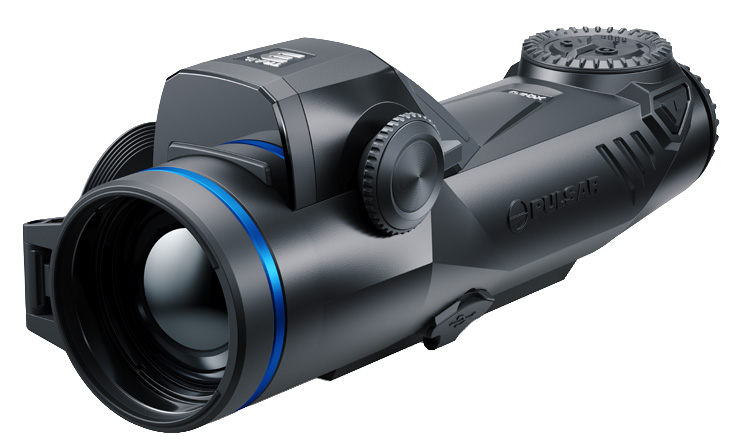

PULSAR TRAIL 3 LRF XQ50 W/MOUNT

Built for short- to mid-range shooting in challenging conditions such as fog humidity or low-contrast environments. It delivers clear stable images to help you spot and track targets reliably even when visibility is limited. – Main specifications – Sensor @ 17 um 384×288/17um – Objective lens F50 / 1.0 – Magnification x 3.5-14 – FOV (HxV) degrees 7.5 – FOV (HxV) m@100m 13.1 – Diopter Adjustment D -5 / +5 – Detection range 1800 m – Reticle – Click range H/V mm at 100m 1800/1800 – Click value H/V mm at 100m 9.1 – Number of preloaded reticles 10 – Sensor – Type Thermal uncooled microbolometric – Resolution pixels 384×288/17um – Pixel pitch um 17 – Sensor NETD mK < 25 – System NETD mK < 15 – Frame rate Hz 50 – Optics – Objective lens F50 / 1.0 – Magnification x 3.5-14 – FOV (HxV) degrees 7.5 – FOV (HxV) m@100m 13.1 – Diopter Adjustment D -5 / +5 – Eye relief mm 50 – Display – Type AMOLED – Resolution pixels 1920×1080 – Laser rangefinder – Max. measuring range m 1200 – Measurement accuracy m ± 1 – Safety class for laser equipment according to IEC 60825-1:2014 1 – Wavelength nm 905 – Video recorder – Video / photo resultion pixel 1440×1080 – Video / photo format .mp4 / .jpg – Build-in memory GB 64 – Bluetooth/WI-FI – Wireless protocol Wi-Fi – Wireless standard IEEE 802.11 b/g/n/ac (WPA) – Frequency Ghz 2.4 / 5 – Environmental characteristics – Degree of protection IP code (IEC60529) IP67 (waterproof) – Operating temperature range °C -25-+50 – Connections and compatibilities – Compatible mounts Multi-point prism – Supported application Stream Vision 2 Stream Vision Ballistics – Shock resistance on the smooth-bore rifles caliber 12 – Max. recoil power on rifled weapon (Eo) Joules 6000 – Power supply – Output voltage V 4.2-3.0 – Battery type LPS 7i – Capacity mAh 6400 – Operating time on battery pack h at t=22° 12h – External power supply V 5V/9V USB Type-C – Weight & size – Body material Magnesium alloy – Dimensions mm 271x86x71 – Weight kg 0.7
