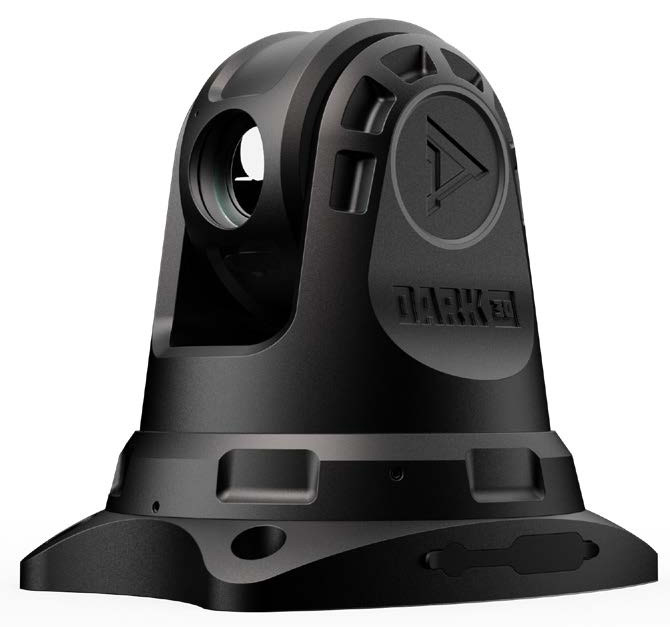

DARK30 DEFIANCE 384PTZ THERMAL CAMERA

The Dark 30 Defiance LS 384 PTZ is a heavy duty thermal imaging unit purpose-built for vehicle mounting. Whether you’re patrolling fence lines tracking predators or rolling deep into ranch country after dark this system gives you the eyes you need when it matters most. – Outfitted with a 384×288 thermal sensor and precision-engineered PTZ control the Defiance LS sees heat through brush fog and pitch darkness while you stay behind the wheel. With app-based control onboard recording and ruggedized construction this rugged vehicle-mounted camera is a turn-key thermal solution for trucks UTVs and off-road platforms. – Features – Variable Speed Remote Control – Sleep Mode – Return To Home Function – 384×288 Thermal Imaging Sensor – Infinite 360° Panning – Low Latency HDMI compatible Wired Screen – App Control on the Dark 30 App – Versatile Mounting Options: – Permanent bolts suction cups or 100lb pull magnets – Water Resistant – Accessories – Base Kit – Remote – 10.1 Screen – Model Name Defiance 384 PTZ – Model # (SKU) DT27001 – Sensor Type Thermal Imaging – Sensor Resolution (px) 384 x 288 @60fps – Pixel Size (um) 17?m – Spectral Range 8-14um – Detector NEDT (30Hz 300K F/1) <40mK – Detection Range (yds/m) 1258 / 1150 – Lens Material F/1.0 Germanium – Lens Diameter mm 30mm – Digital Zoom 1-8x – Magnification 1x – FOVº (Horizontal Vertical Diagonal) 12 / 9 / 15 – Dimensions (in/mm) 6.65 x 7.68 x 7.8in / 169 x 195 x 198mm – Weight (lbs/kg) 5.9 / 2.68 – Operating Temp. Range -4°F to 122°F / -20ºC to 50ºC – Color Palettes 5 – Water Resistance IP66 – Pan Angle Continuous 360º – Tilt Angle Straight Down to 45º Above Horizontal – Body Material Aluminum – Ports 1 TF card slot 2 HDMI ports 2 DC ports – Display Type HDMI or App to external display – Maximum Memory Card GB 4-512 GB (Class10 recommended) – Power Supply External 12v DC Car cigarette power – Compliance Prop 65/ ROHS / CE / WEE HDMI FCC Prop 65 Lead /Yes / Yes / Yes
